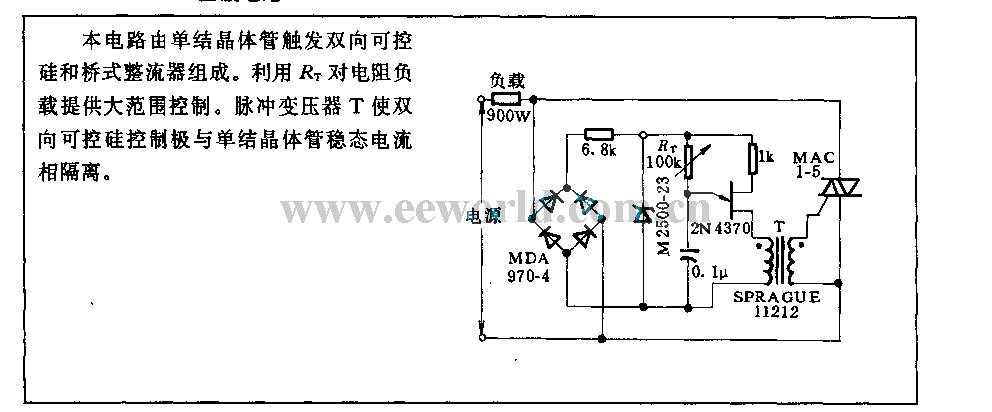

The circuit is composed ofSingle junction transistor trigger bidirectional triode thyristor and bridge rectifier. It use theRT control a wide range of resistive load . Pulse transformer T isolates the single junction transistor steady-state current and silicon-controlled rectifier control extremely.
