8_BIT_DIGlTAL_OUTPUT

Published:2009/6/30 1:54:00 Author:May | From:SeekIC

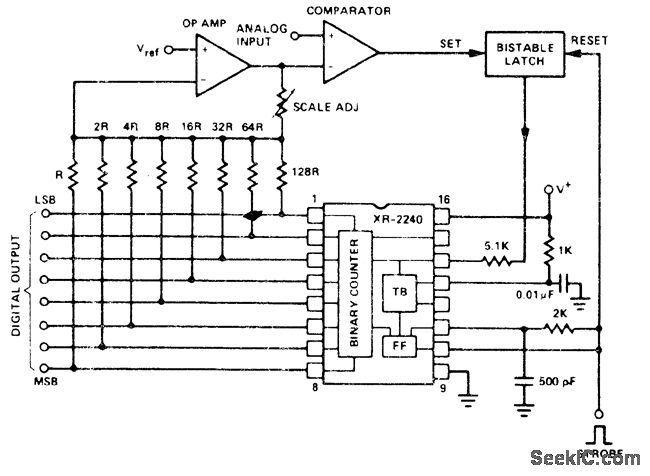

Digital output is obtained in parallel format from binary-counter output of Exar XR-2240 programmable timer/counter. Recycle time is about 6 ms. Supply voltage can be 4-15 V.— Timer Data Book, Exar Integrated Systems, Sunnyvale, CA, 1978, p 11-18.
