82C250 functional block circuit diagram

Published:2012/12/12 2:58:00 Author:Ecco | Keyword: functional block | From:SeekIC

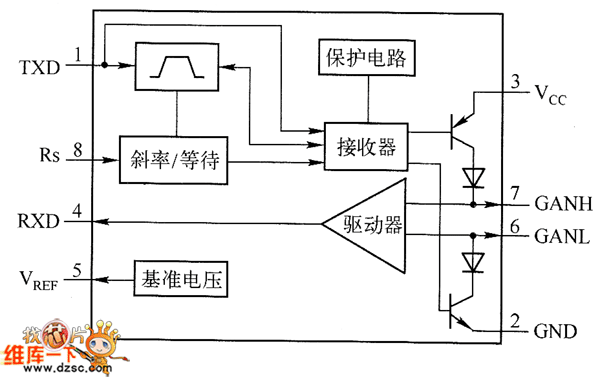

Figure 1 shows a functional block diagram between CAN controller and interface circuit 82C250 of physical bus. 82C250 is able to provide differential receive and transmit functions for bus to achieve electrical isolation between each node on the bus, and the maximum transmission rate is up to 1 Mb / s.
