80_METER_CWFOR_0RP

Published:2009/7/7 4:30:00 Author:May | From:SeekIC

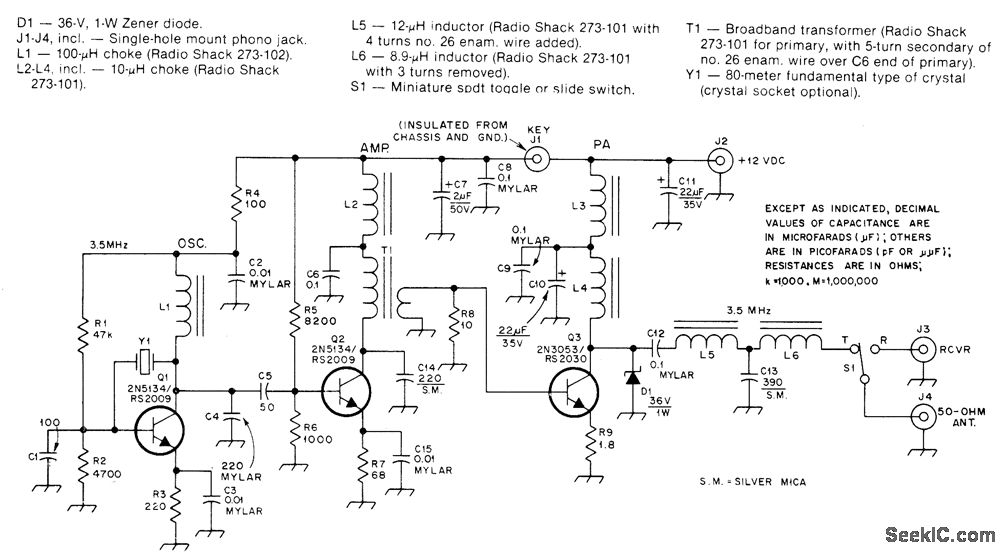

Low-powertransmit-tercan be mounted on small can for operation from separate 12-V supply. Zener D1 protects 03 by clamping on RF voltage peaks in excess of 36 V, Output tank of 03 gives satisfactory operation from 3.5 to 3.75 MHz without tuning.-D. DeMaw, Build This Sardine Sender, QST, Oct. 1978, p 15-17 and 38.
