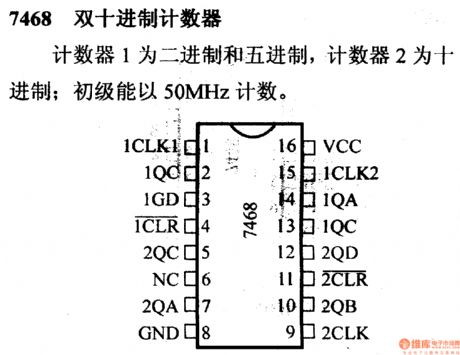

74 series digital circuit of 7468 dual decade counter

Published:2011/4/1 1:20:00 Author:Ecco | Keyword: digital circuit, dual decade , counter | From:SeekIC

The counter 1 is in binary and quinary system, the counter 2 is a kind of decade counter. The primary is counting with 50MHz.
