74HCT4538N double precision monostable multivibrator integrated circuit

Published:2011/7/27 10:26:00 Author:Nancy | Keyword: double precision , monostable multivibrator | From:SeekIC

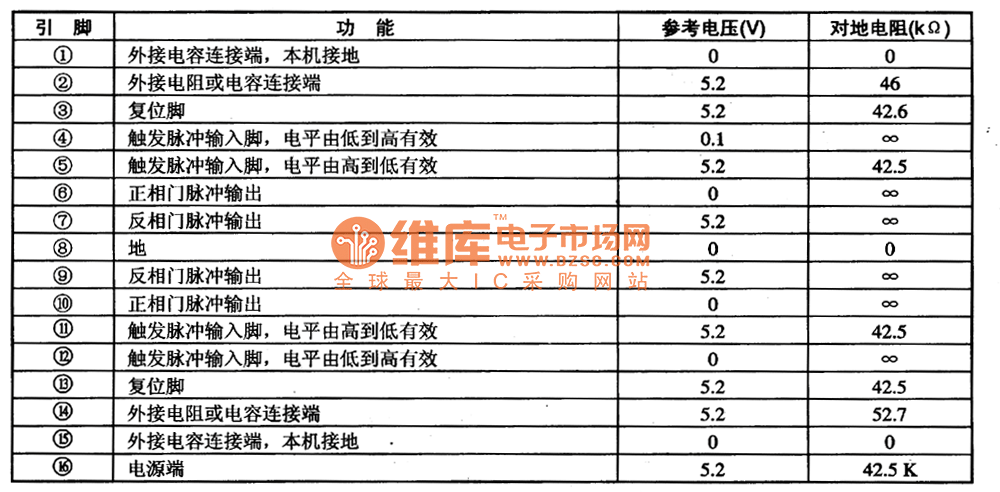

The 74HCT4538N is a double precision monostable multivibrator integrated circuit widely used in TV, audio, VCD, computers and monitors, and other electrical equipment. The 74HCT4538N integrated circuit includes two monostable multivibrators with the same function inside. It can replace directly the model CC4538β. The IC uses DIP package widely used in the BaiHong DT2000 type frequency doubling wide screen color TV. The pin function and data is shown as table 1.
