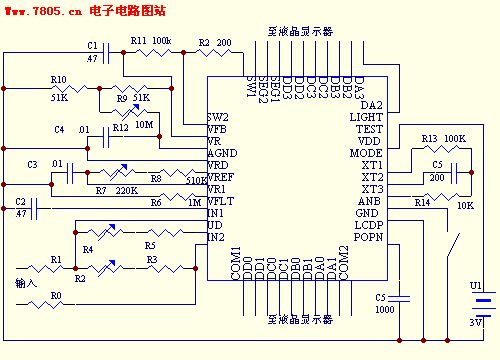

6Y7 Monolithic automatic voltmeter

Published:2011/9/15 21:16:00 Author:Rebekka | Keyword: Monolithic automatic voltmeter | From:SeekIC

Overview:1. Low power consumption: We hope two ordinary button battery can be used for half an year.2. Low voltage: It does not use bulky batteries such as 5 # battery or tandem structure.3. High precision: It owns 31/2 or more precision.4. High stability: It requires a good reading stability.5. Low-cost: The cost of chip is lower than RMB10.00.6. Automatic: Fool-type operation.7. Monolithic: It does not use other active devices such as reference power and thermistor etc.That is these requirements produce the following design requirements.1. Use ordinary digital circuits manufacturing chip.2. Precision reference supply.3. Precision comparator.4. Precision Rectifier.5. 3V power supply.6. Working current is lower than 1MA.7. Analog / digital conversion.8. The least amount of external adjustment.
