60_Hz_ADJUSTABLE_Q_NOTCH

Published:2009/7/2 7:37:00 Author:May | From:SeekIC

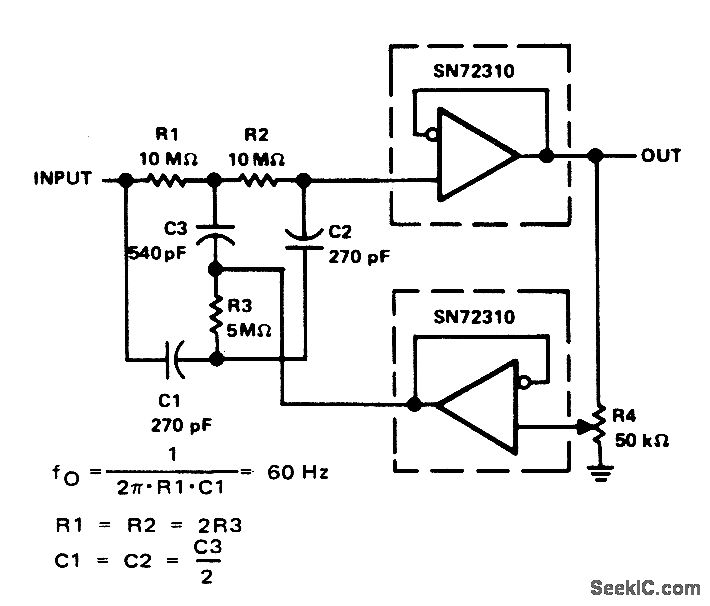

Connection shown for two SN72310 voltage-follower opamps provides attenuation of 60-Hz power-line frequency. Setting of R4 determines a of filter.- The Linear and Intelface Circuits Data Book for Design Engineers, Texas Instruments, Dallas, TX, 1973, p 4-39.
