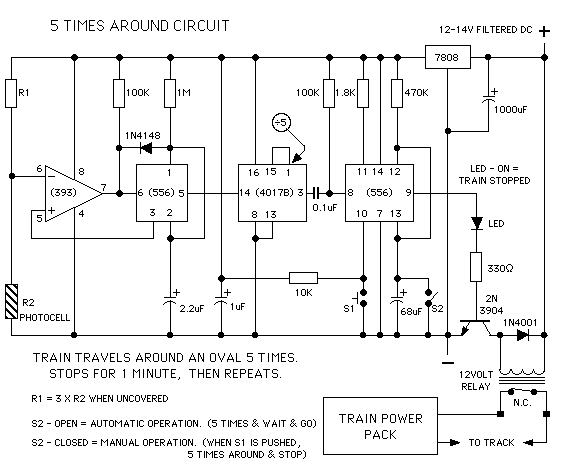

5 Times Around Circuit

Published:2013/6/7 21:36:00 Author:muriel | Keyword: 5 Times Around Circuit | From:SeekIC

The 5 Times Around circuit was designed to automatically let an N Scale locomotive and car travel around a loop 5 times and stop for approximately a minute and then repeat the cycle. The loop of track was set up as an amusement park type of ride in the trolley section of The London Model Railroad Group's, 'O' scale layout. The club is located at London, Ontario, Canada.
