5_MHz_COAX_LINE_DRIVER

Published:2009/7/14 4:37:00 Author:May | From:SeekIC

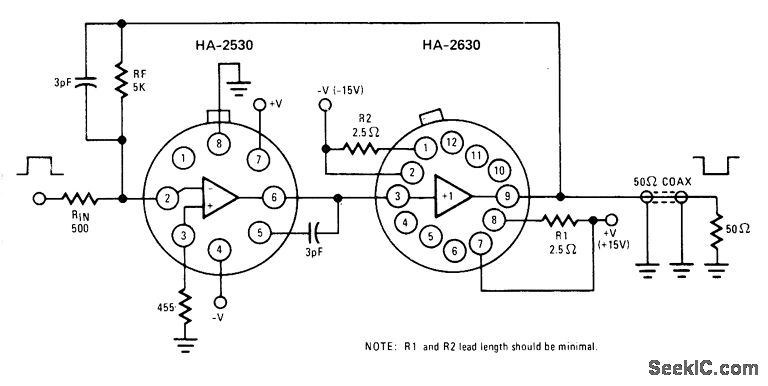

Combination of Harris HA-2530 wideband inverting amplifier and HA-2630 unity-gain current amplifier pro-vides 20-dB gain with extremely high slew rate and full power bandwidth even under heavy output loading conditions.- Linear & Data Acquisition Products, Harris Semiconductor, Melbourne, FL, Vol. 1, 1977, p 2-47-2-50.
