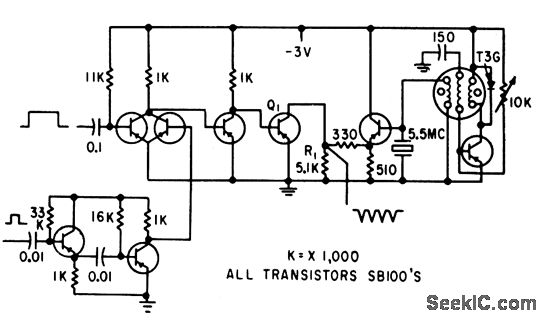

55_MC_CRYSTAL_OSCILLATOR_GATE

Published:2009/7/16 2:13:00 Author:Jessie | From:SeekIC

Provides train of pulses to be recd by 7-digit binary counter. Number of pulses in train depends on width of gate pulse received from gate amplifier, and is proportional to amplitude of data input pulse.-W. W. Grannemann et al, Pulse-Height-to-Digital Signal Converter, Electronics, 33:2, p 58-60.
