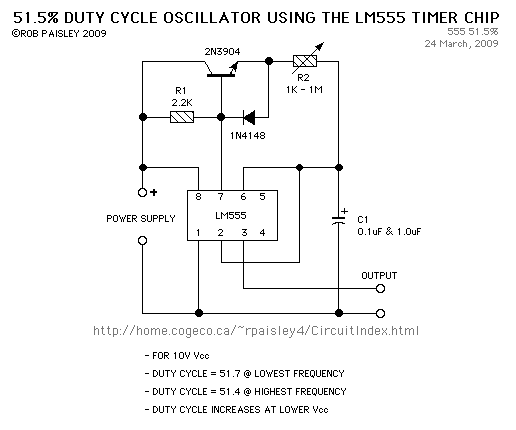

51.5% Duty Cycle Oscillator

Published:2013/5/22 21:41:00 Author:muriel | Keyword: 51.5% Duty Cycle Oscillator | From:SeekIC

Reprinted Url Of This Article:
http://www.seekic.com/circuit_diagram/Basic_Circuit/515_Duty_Cycle_Oscillator.html

Print this Page | Comments | Reading(3)
