50_OHM_TRANSMISSION_LINE_DRIVER

Published:2009/7/1 22:46:00 Author:May | From:SeekIC

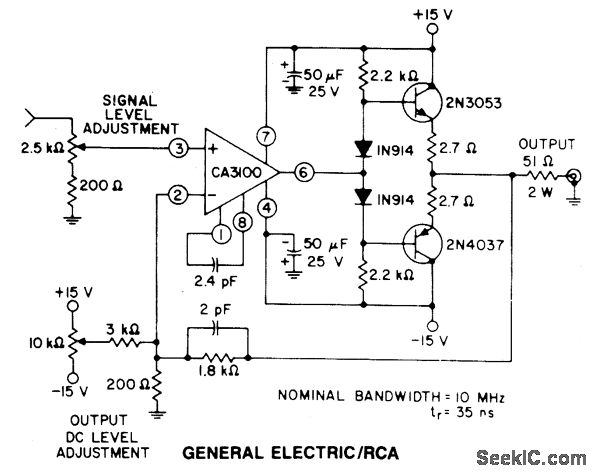

This circuit uses a wideband, high slew rate CA3100 BiMOS op amp. The slew rate for this amplifier is 28 V/μs. Output swing is 9 volts peak-to-peak into a terminated line, measured at the termination.
