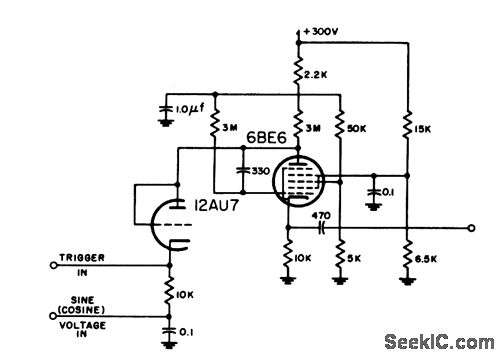

50_350_MICROSEC_PHANTASTRON_DELAY

Published:2009/7/15 3:23:00 Author:Jessie | From:SeekIC

Gives 0.5% accuracy. Phantastron furnishes own gate and does not require amplifier to trigger blocking oscillator al output.-NBS, Handbook Preferred Circuits Navy Aeronautical Electronic Equipment, Vol. 1, Electron Tube Circuits, 1963, pN9-2.
