50_30000_Hz_WlEN_BRIDGE

Published:2009/7/5 22:23:00 Author:May | From:SeekIC

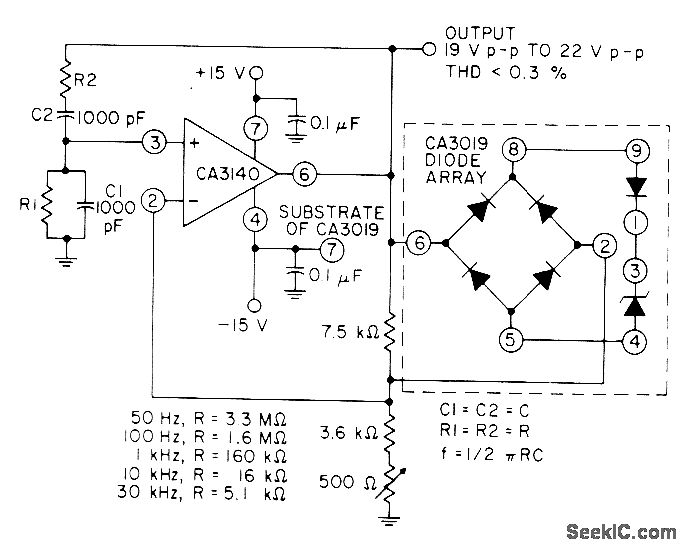

Wide-range audio oscillator utilizes high input impedance, high slew rate, and high voltage characteristics of CA3140 opamp in combination with CA3019 diode away. RI and R2 are same value, chosen for frequency desired as given in table.- Circuit Ideas for RCA Linear ICs, RCA Solid State Division, Somerville, NJ, 1977, p 4.
