500_MC_SMALL_SIGNAL

Published:2009/7/10 5:45:00 Author:May | From:SeekIC

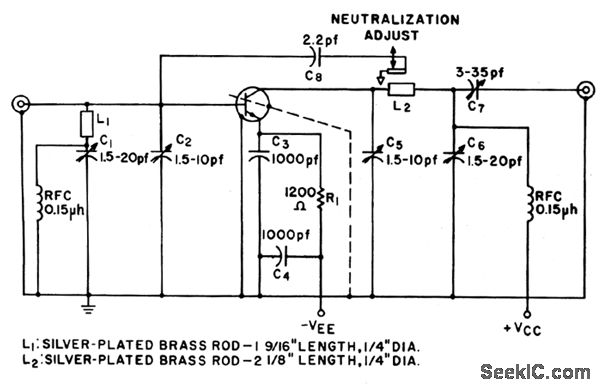

Uses 2N3570 silicon transistor to give 16 db gain.-Texas Instruments Inc., Solid-State Communications, McGraw-Hill,N.Y.,1966,p 259.
