500_Hz_LOW_PASS_UNITY

Published:2009/7/2 20:44:00 Author:May | From:SeekIC

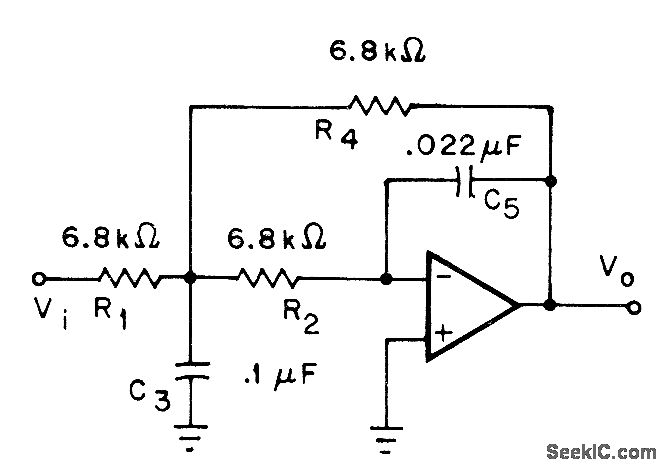

GAIN-Multiplefeedback filter using 741 or equivalent opamp has unity gain in passband below 500-Hz cutoff.Resistors can be 5% tolerance.-H. M, Berlin, Design of Active Filters, with Experiments, Howard W. Sams, Indianapolis, IN,1977,p 99-1O0.
