4_bit_D_A_converter_with_microprocessor_interface

Published:2009/7/23 21:43:00 Author:Jessie | From:SeekIC

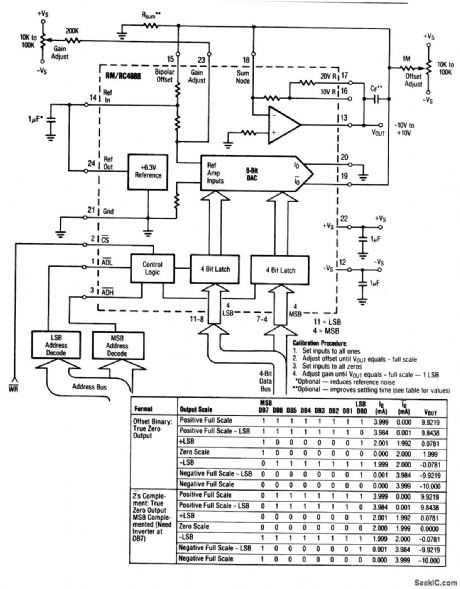

This circuit uses a DAC-4888 and a few external components to form a D/A converter with microprocessor interface (4-bit data bus). The output is + 10 V to -10 V with complementary binary input (all zeros equal full scale).
