4_KC_SCALER

Published:2009/7/13 23:08:00 Author:May | From:SeekIC

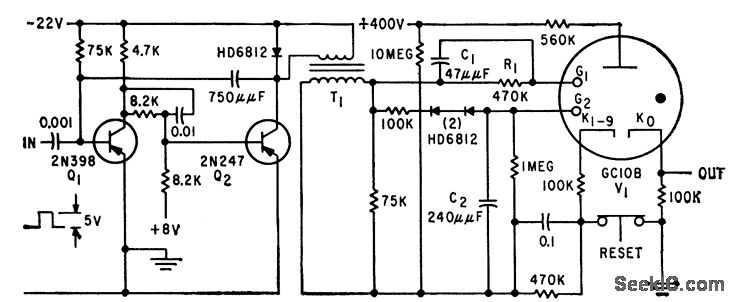

Drives glow tube at maximum possible rate. Uses single-shot mvbr and step-up transformer Q1 to obtain 300-V pulses required to drive glow tube. Single drive pulse is fed simultaneously to both guides of tube.-H. A, Kampf, Increasing Counting System Reliability Electronics.32:37,p112-1l3.
