4_8_V_WINDOW

Published:2009/7/14 21:21:00 Author:May | From:SeekIC

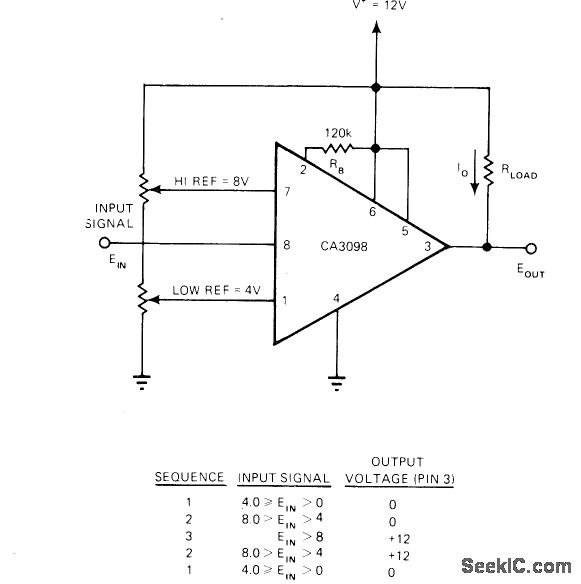

CA3098 dual-input precision level detector tells if data input signal is above or below preset levels of 4 and 8 V. Table gives output states for various input levels. Output current can be up to 150 mA.-G. J. Granieri, Precision Level Detector IC Simplifies Control Circuit Design, EDN Magazine, Oct. 5, 1975, p 69-72.
