450_MC_TO_105_MC_WITH_2N2415

Published:2009/7/13 4:57:00 Author:May | From:SeekIC

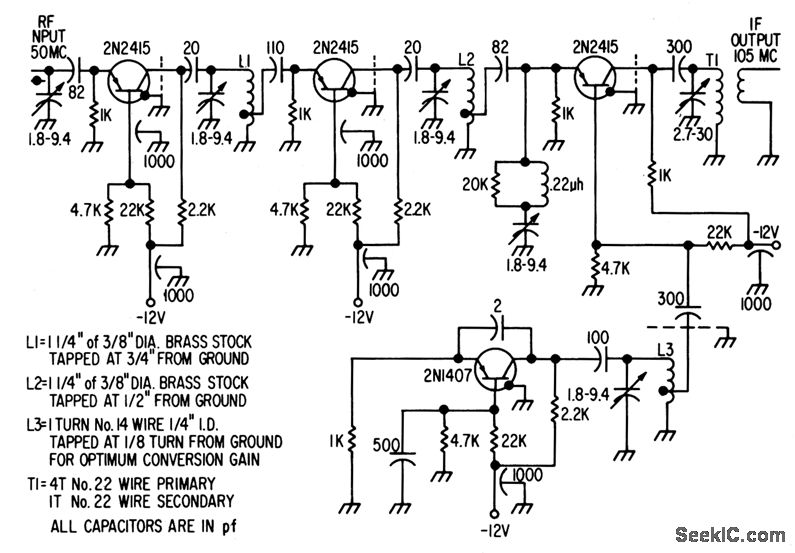

Two-stage r-f amplifier has power gain of 20 db, noise figure of 4.5 db, and bandwidth of 10 Mc, 2N1407 local oscillator operates at 345 Mc.Conversion gain of mixer is 12 db. Total antenna to i-f conversion gain is 32 db.-Texas Instruments Inc. Solid-State Communications, McGraw-Hill, N.Y.1966, p307.
