40KHz TV-VCR LIGHT SOURCE REPEATER

Published:2012/9/10 20:36:00 Author:Ecco | Keyword: 40KHz, TV-VCR, LIGHT SOURCE REPEATER | From:SeekIC

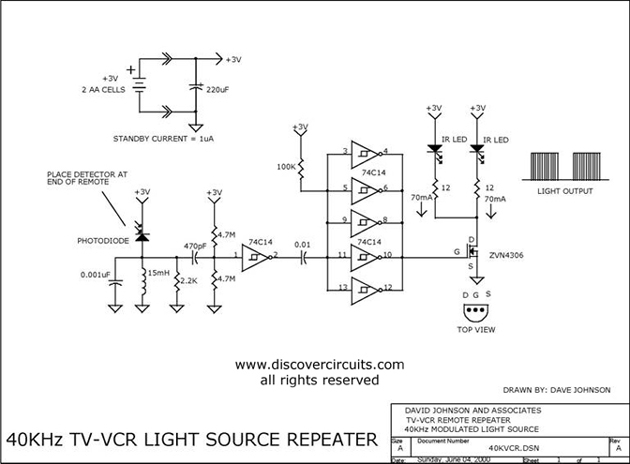

This circuit is designed to be placed directly in front of a standard TV or VCR remote. The exiting light pulses produced by the circuit match the pulses from the remote but are about 10 times more powerful. Using the device, the remote can operate a TV or VCR over three times the normal distance. Source: discovercircuits
