400_Hz_TRIGGER_FOR_SCR

Published:2009/7/13 20:44:00 Author:May | From:SeekIC

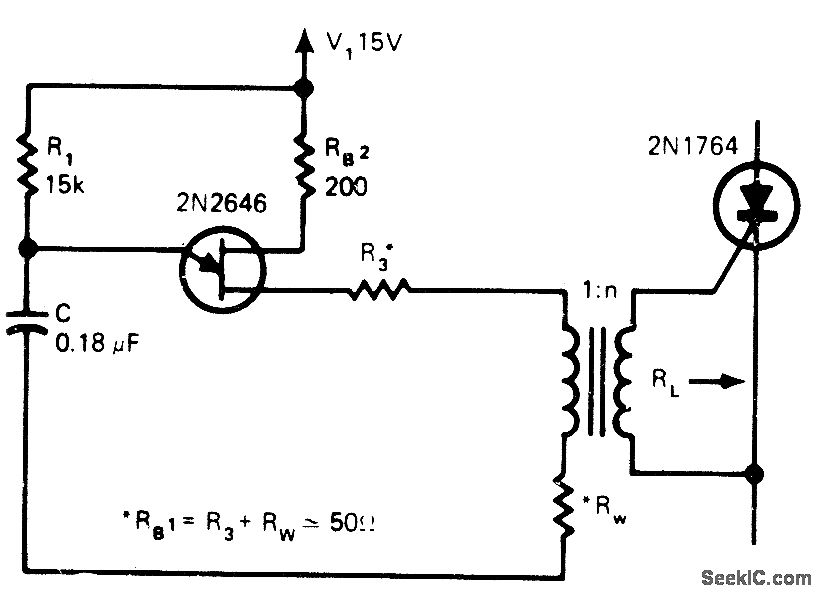

Simple UJT oscillator combined with pulse transformer provides pulses required for firing 2N1764 SCR.Article gives design data for pulse transformer,along with design equations.-W. Dull, A, Kusko, and T. Knutrud, Pulse and Trigger Transformers-Performance Dictates Their Specs, EDN Magazine, Aug. 20, 1976, p 57-62.
