3 lines mixer

Published:2012/10/18 2:25:00 Author:muriel | Keyword: 3 lines, mixer | From:SeekIC

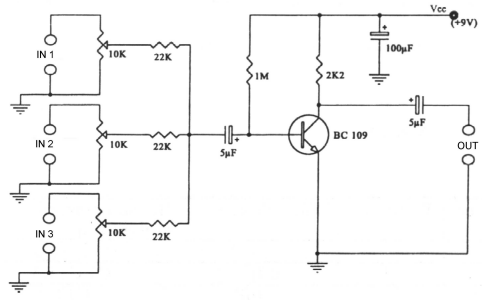

This project is a 3 or more lines mixer. For more than 3 inputs you can repeat the input parts (P=10K R=22K). It powered with 9Vdc.
