3_kHz_STATE

Published:2009/7/2 23:42:00 Author:May | From:SeekIC

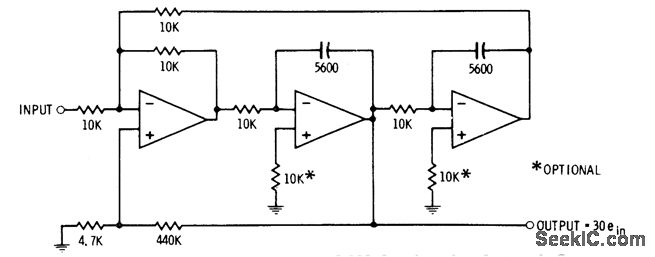

VARIABLE BANDPASS-Design is based on value of 30 for Q, corresponding to 0.033 for damping factor d. Opamps can be 741.-D. Lancaster, Active-Filter Cookbook, Howard W. Sams, Indianapolis, IN, 1975, p 166.
