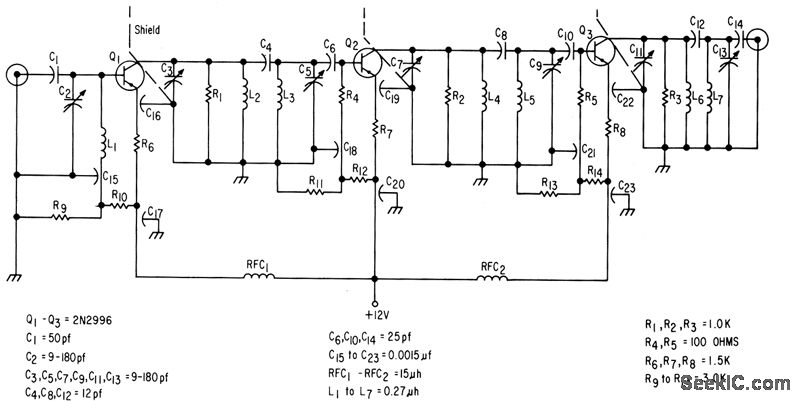

30_MC_DOUBLE_TUNED

Published:2009/7/10 5:19:00 Author:May | From:SeekIC

Proper loading provides good stabilily along with gain of 21 db per stage,despite inherent instability of 2N2996 at this frequency. Total power gain is thus 63 db, for noise figure of 2.3 db and bandwidth of 3 Mc.-Texas Instruments Inc., solid-Stale Communications, McGraw-Hill,N.Y, 1966, p 310.
