300_KW_MAGNETRON_MODULATOR

Published:2009/7/20 23:55:00 Author:Jessie | From:SeekIC

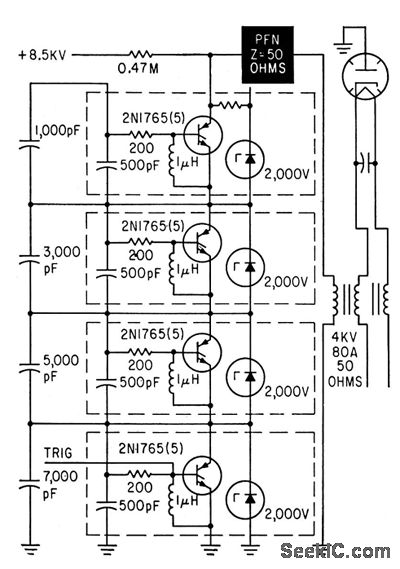

Trigger is applied to first of four 2-kv switch modules arranged in series, for simultaneous triggering of other modules to furnish 16-kv 20-amp pulse to type 7208 Ku-band coaxial magnetron through standard 50-ohm pulseforming network PFN.-F. A. Gateka and M. L.Embree, Semiconductor Modulators for Modern Magnetrons, Electronics, 35:37, p 42-45.
