2_MHz_MASTER_CLOCK

Published:2009/7/7 4:47:00 Author:May | From:SeekIC

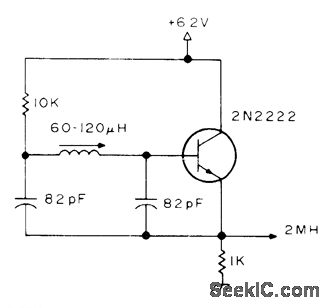

Developed for use with Geneml lnstruments AY-3-8500-1TV game chip,which contains dividers that deliver required 60-Hz vertical and 15.75-kHz horizontal sync signals for video signal going to TV set. Coil is Miller 9055 miniature slugtuned. Article gives other circuits for game.-S.Ciarcia,Hey,Look What My Daddy Builtl,73 Magazine,0ct.1976,p 104-108
