2_KC_SCR_INVERTER

Published:2009/7/15 5:03:00 Author:Jessie | From:SeekIC

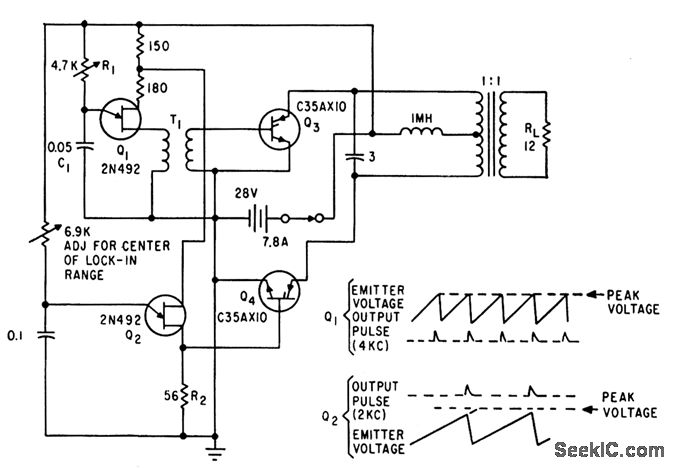

Circuit shows parallel inverter, but unijunction relaxation oscillators Q1and Q2 could also trigger series inverter, giving symmetrical operation. Q1 operates at twice the frequency of Q2.-D. V. Jones, Turn-Off Circuits for Controlled Rectifiers, Electronics, 33:32, p 52-55.
