2_AND_4_INPUT_PULSE_NOR_GATE

Published:2009/7/16 3:39:00 Author:Jessie | From:SeekIC

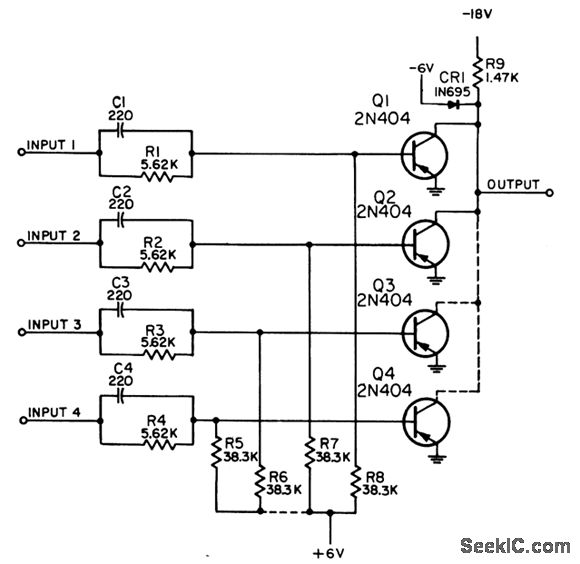

Circuit is special-purpose nor gate for computer, control, and communication equipment. Used for the and operation when a general-purpose nor gate would be unsatisfactory because of possible spurious pulses in output.-NBS, Handbook Preferred Circuits Navy Aeronautical Electronic Equipment, Vol. II, Semiconductor Device Circuits, PSC 8 (originally PC 211), p 8-2.
