2_30_MHz_SSB_DRIVER

Published:2009/7/14 4:02:00 Author:May | From:SeekIC

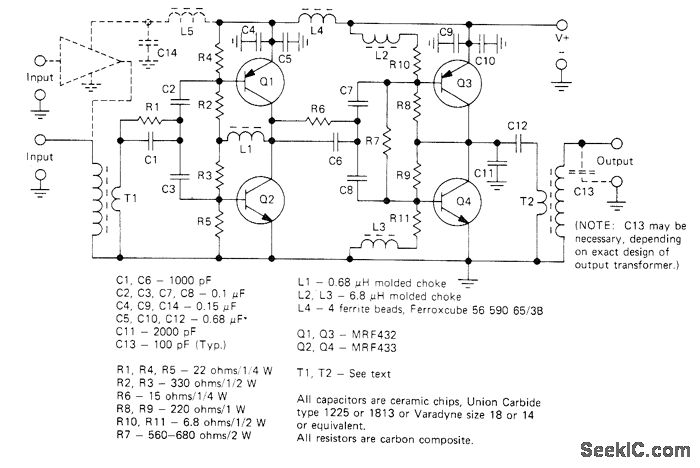

Two-stage complementary-symmetry amplifier combines single-ended impedance matching with high-gain push-pull design to provide up to 25 W PEP for driver applications. Provides good harmonic rejection and low intermodulation distortion. Supply voltage range is 22-30 V. Low-impedance windings of T1 and T2 use 1 turn of copper braid, with 2 turns No. 22 for primary of T1 and 4 turns No. 22 for secondary of T2.-H. Granberg, A Complementary Symmetry Amplifier for 2-30 MHz SSB Driver Applications, Motorola, Phoenix, AZ, 1975, EB-32.
