2CU301 silicon photosensitive diode appearance structure and circuit

Published:2011/7/3 20:49:00 Author:Christina | Keyword: silicon, photosensitive diode, appearance structure | From:SeekIC

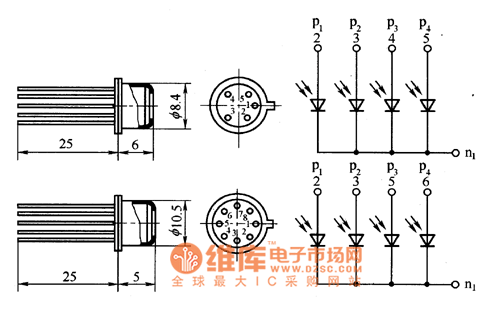

The 2CU301 four-quadrant silicon photosensitive diode is in the sealed metal shell package, there is the glass window on the top. The appearance structure is as shown in the figure. Figure: 2CU301 silicon photosensitive diode appearance structure and circuit
