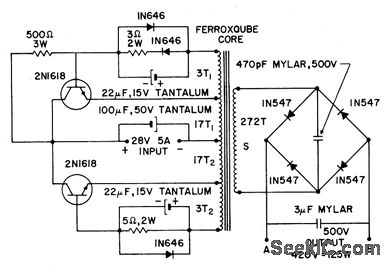

28_TO_420_V_D_C_CONVERTER

Published:2009/7/13 20:27:00 Author:May | From:SeekIC

Efficiency is 87%, power output 125w, output voltage ripple 0.7V p-p, and operating frequency 10 kc. Ambient temperature range is -50 to 125℃. Transformer winding data is given.- Transistor Manual, Seventh Edition, General Electric Co.1964, p238.
