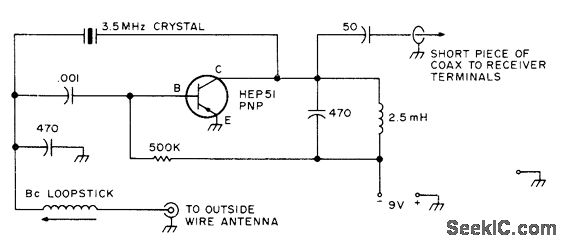

25_500_kHz_TO_35_4_MHz

Published:2009/7/16 3:27:00 Author:Jessie | From:SeekIC

When receiver is tuned to 3.5 MHz and converter is peaked for loudest signal, combination is tuning 25.kHz range. With receiver tuned to 4 MHz converter gives coverage at 500 kHz.--Circuits, 73 Magazine, May 1977, p 19.
