250_W_50_KC_INVERTER

Published:2009/7/15 1:35:00 Author:Jessie | From:SeekIC

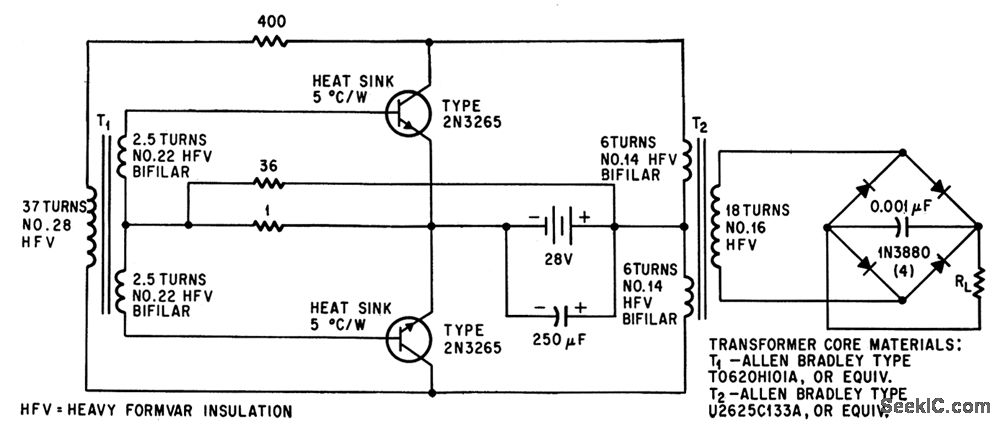

Silicon power transistors in high-speed inverter circuit give con version efficiency up to 90% in changing 28 v d-c to 50 kc at primary of output transformer.-H. T. Breece, Boosting D-C Voltage With Sillcon Transistors, Electronics, 37:29, p 56-66
