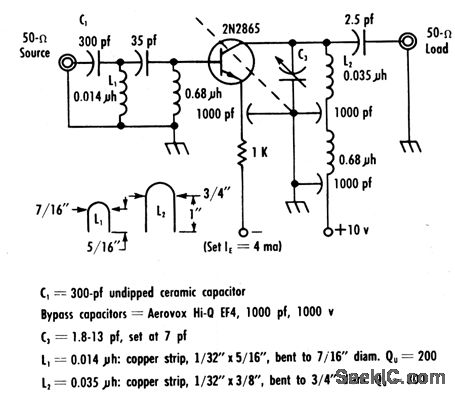

250_MC_R_F_FOR_MILITARY_VHF_BAND

Published:2009/7/10 5:22:00 Author:May | From:SeekIC

Gives 12.5 db gain and noise figure of only 5 db, with excellent stability.-Texas Instruments Inc., solid-State Communications, McGraw-Hill,N.Y.,1966,p 297.
