250_KC_FLIP_FLOP

Published:2009/7/14 21:05:00 Author:May | From:SeekIC

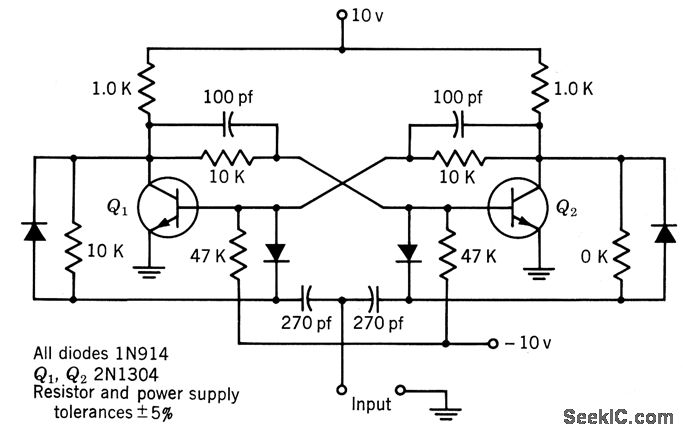

Basic design procedure is given. Circuit shown operates over temperature range of -55 to +55℃ with input frequency of 250 kc.-Texas Instruments Inc., Transistor Circuit Design, McGraw-Hill, N.Y., 1963, p 377.
