250V Trigger circuit

Published:2011/3/21 2:51:00 Author:muriel | Keyword: 250V, Trigger circuit | From:SeekIC

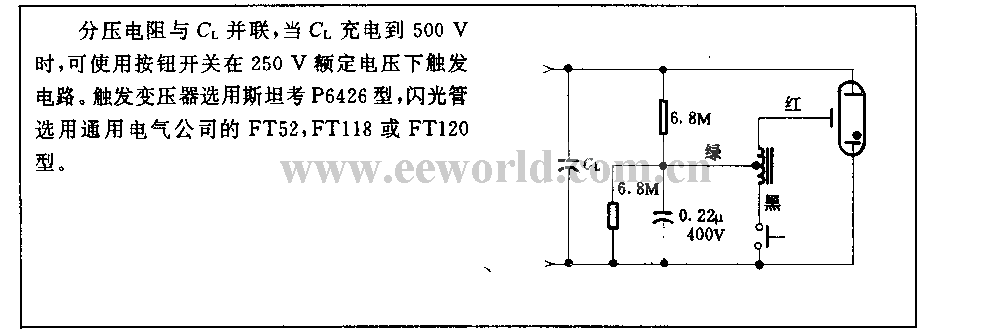

When divider resistance and CL in parallel, CL charging to 500V, can use button switch on the rated voltage 250V to trigger circuit. Trigger transformer are the Stanko P6426 type, flash tube alwaysuse the General electric company's FT52, FT118 or FT120 type.
