2500_V_isolated_5_driver_5_receiver_RS_232_transceiver

Published:2009/7/23 22:48:00 Author:Jessie | From:SeekIC

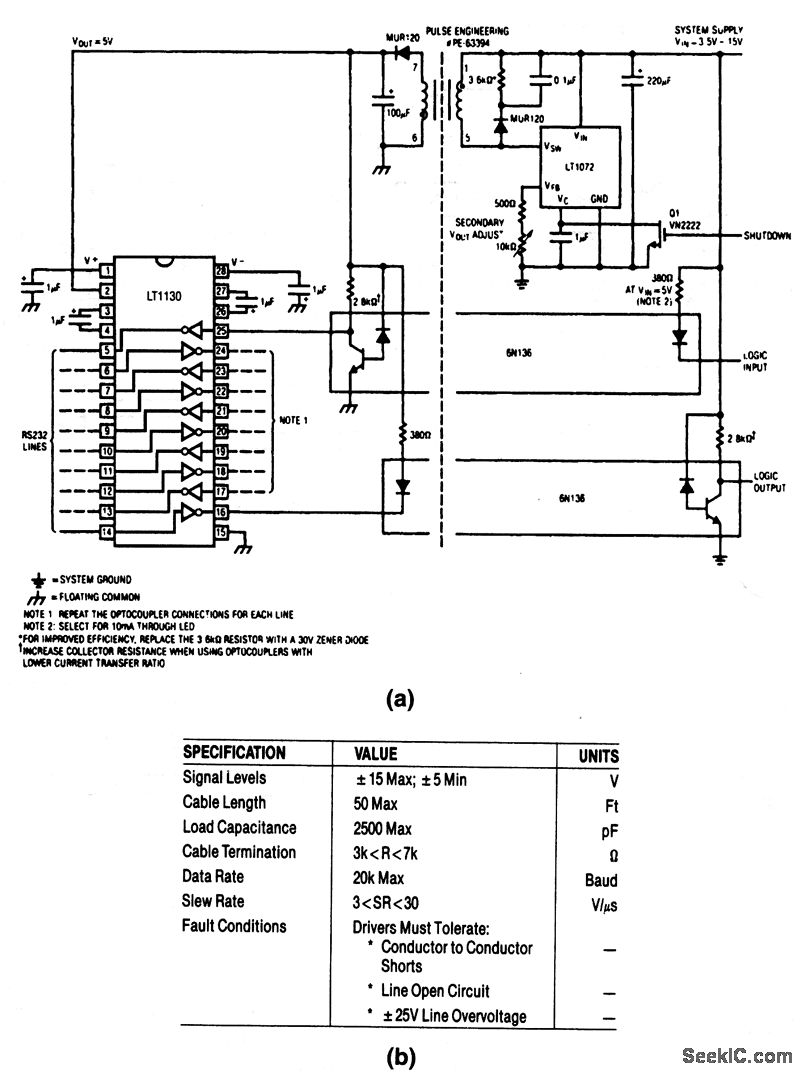

This circuit provides 2500-V isolation with optically coupled data lines, and an isolated 5-V supply. A powered transceiver eliminates the need for three supplies on both sides of the isolation transformer. The circuit meets the key RS-232 transceiver specifications (EIA RS232C.V28) shown in Fig. 6-68B.
