220V power supply LED lamp driver circuit

Published:2011/7/8 2:41:00 Author:Fiona | Keyword: 220V power supply, LED lamp driver | From:SeekIC

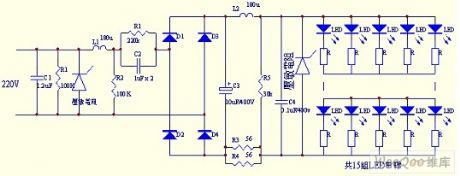

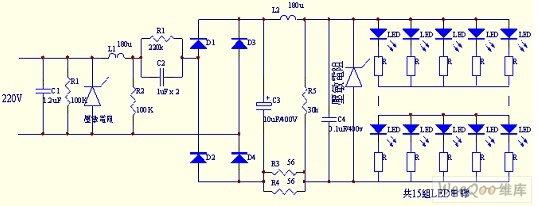

In the circuit,C1,R1,piezoresistor,L1,R2 form the primary power supply filter circuit,it can be able to filter the input instant high voltage,C2,R2 form step-down circuit,C3,C4,L2 and piezoresistor form the filter circuit after rectifying. This circuit uses a dual filter circuit,it can effectively protect the LED not be breakdown and damage by instant high voltage.
