21_75MHz_DIODE_RECEIVER

Published:2009/7/4 5:31:00 Author:May | From:SeekIC

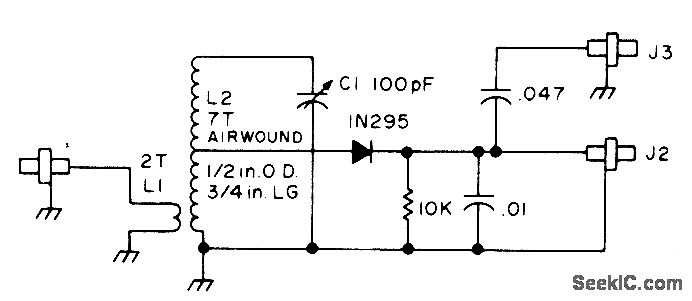

Covers 6-meter band and most 2-meter FM receiver oscillators near 45 MHz. Circuit is essentially that of crystal detector. Jack J3 gives AF output, and J2 gives DC output for meter.-B. Hoisington, Tuned Diode VHF Receivers, 73 Magazine, Dec. 1974, p 81-84.
