20_dB_GAIN_FOR_2m

Published:2009/7/2 22:10:00 Author:May | From:SeekIC

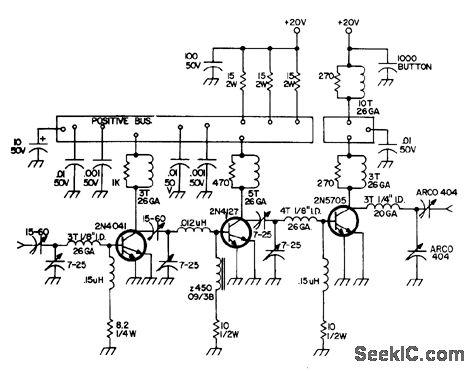

Input of 200 mW is amplified to 20 VV. Positive 20-V sources are separated so final stage can be amplitud-modulated; for FM, connect to single supply.Transistors require heatsinks.-Circuits, 73 Magazine, May 1973, p 106.
