20_20000_Hz_LOW_DISTORTION

Published:2009/7/5 23:15:00 Author:May | From:SeekIC

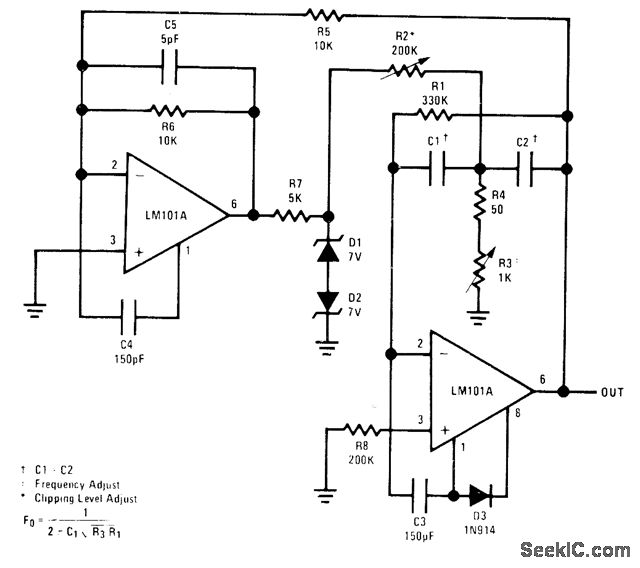

Opamp at right is driven by dquare-wave output of comparator at left, with feedback between opamps providing oscillation. Frequency range covered by tuning control R3 is determined by equalvalue capacitors C1 and C2, which range from 0.4 μF for 18-80 Hz to 0.002 μF for 4.4-20 kHz. Distortion rangesfrom 0.2% to 0.4% when 20% clipping of sine wave is provided by zeners.Both positive and negative supplies should be bypassed with 0.1-μF disk ceramic capacitors.- Easily Tuned Sine Wave Oscillators, National Semiconductor, Santa Clara, CA, 1971, LB-16.
