1_min_WITH_TRANSISTOR_ARRAY

Published:2009/7/13 2:24:00 Author:May | From:SeekIC

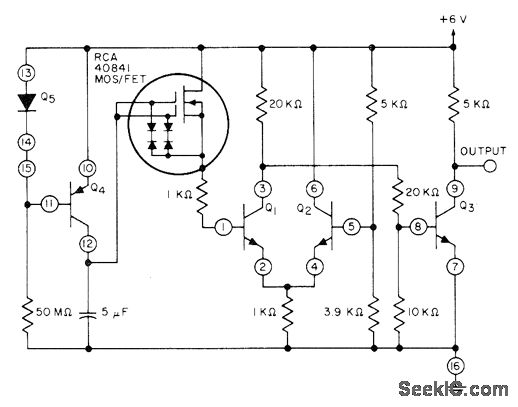

Circuit uses RCA CA3096AE five-transistor array in combination with dual-gate MOSFET to provide timing action that maintains accuracy within 7% for supply voltage variations of ±10%, Q5 is one of PNP transistors connected as diode.- Linear Integrated Circuits and MOS/FET's, RCA Solid State Division, Somerville, NJ, 1977, p 205-210.
