1_kHz_STATE_VARIABLE_WITH_Q_OF_1O

Published:2009/7/2 4:53:00 Author:May | From:SeekIC

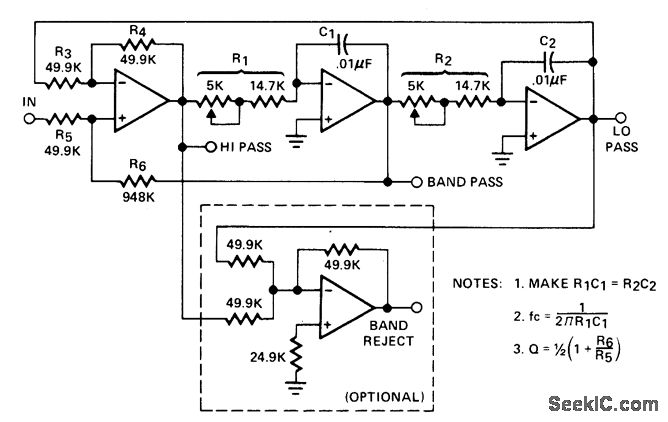

Use of all four sections of Harris HA-4602/4605 quadopamp glves four types of 1－kHz second-order filtering simultaneously.Pot adjustments permit matching of various RC products allowing for noninteractive adjustment of Q and center frequency.- Linear & Data Acquisition Products, Hamis Semiconductor, Melbourne, FL,vol，1,1977,p 2-84.
