1_kHz_STATE_VARIABLE

Published:2009/7/2 20:31:00 Author:May | From:SeekIC

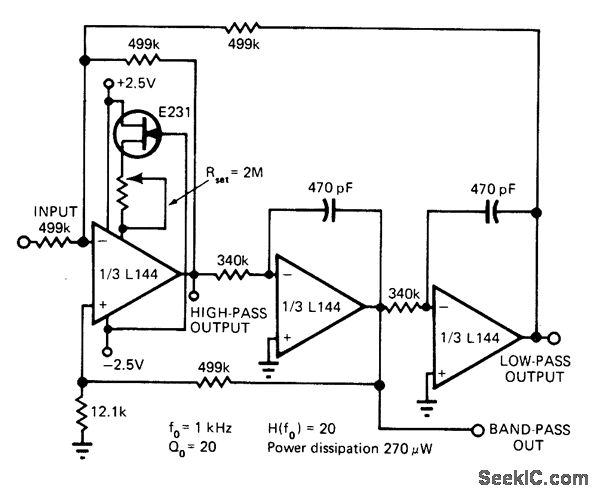

Low-power filter uses three opamps to provide simultaneous high-, low-, and bandpass outputs. Article presents complete design procedure for keeping current drain at minimum while providing desired gain-bandwidth product of 240 kHz.-L.Schaeffer, Op-Amp Active Filters-Simple to Design Once You Know the Game, EDN Magazine, April 20, 1976, p 79-84.
