1_kHz_HIGH_PASS_UNlTY

Published:2009/7/2 20:42:00 Author:May | From:SeekIC

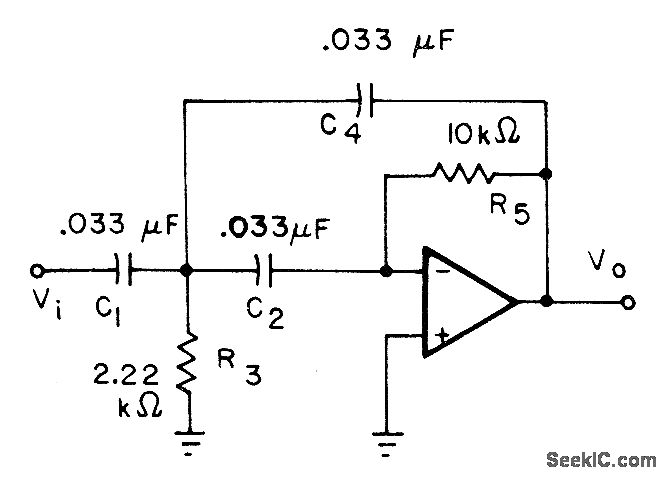

GAlN-Passband gain of 741 or equivalent opamp circuit is set by ratio of C4 to C1 rather than by resistors. Values shown give unity gain for passband above 1-Hz cutoff. Circuit uses multiple feedback.-H. M.Berlin, Design of Active Filters, with Experiments, Howard W. Sams, Indianapolis, IN, 1977, p 100-102.
