1_kHz_HIGH_PASS_FLATTEST_RESPONSE

Published:2009/7/3 2:17:00 Author:May | From:SeekIC

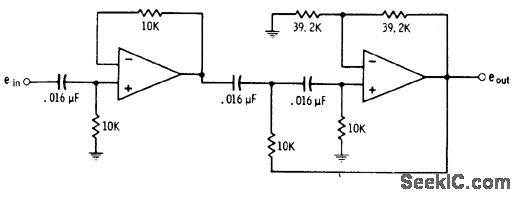

Values are chosen for flattest possible response obtainable with third-order configuration of two 741 opamps. Tripling capacitance values cuts cutoff frequency by one-third and vice versa. Component tolerance can be 10%. Gain is 2.-D.Lancaster, Active-Filter Cookbook, Howard W. Sams, Indianapolis, IN, 1975, p 186.
