1_kHz_BANDPASS_2

Published:2009/7/2 22:30:00 Author:May | From:SeekIC

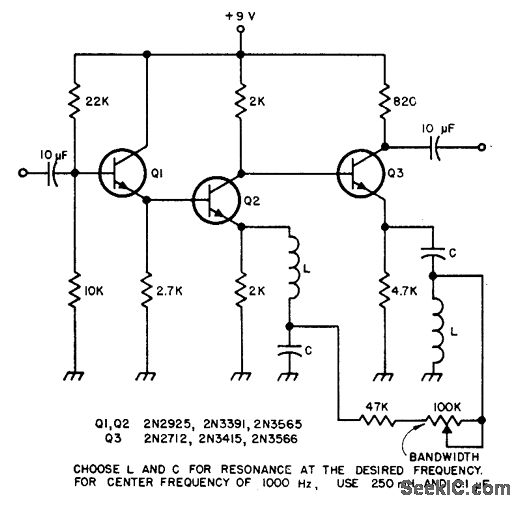

Three-stage audio filteruses two series resonant circuits to give very narrow audio passband Amount of feedback determines Q and bandwidth．-Circuits,Magazine, March 1974, p 89.
