1_W_AT_6_V_

Published:2009/7/10 5:08:00 Author:May | From:SeekIC

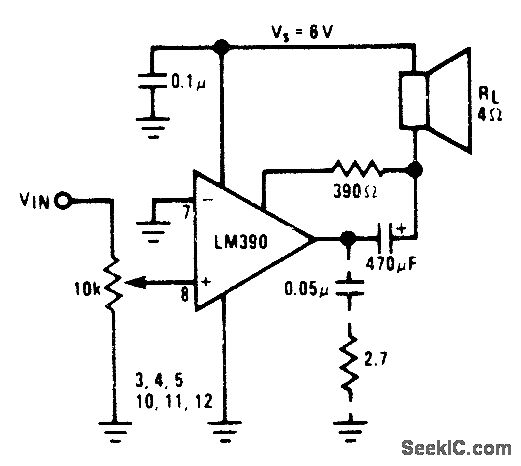

Battery-operated power amplifier using National LM390 IC provides ample power for loudspeaker despite operation from 6-V portable battery.- Audio Handbook, National Semiconductor, Santa Clara, CA, 1977, p 4-41.
